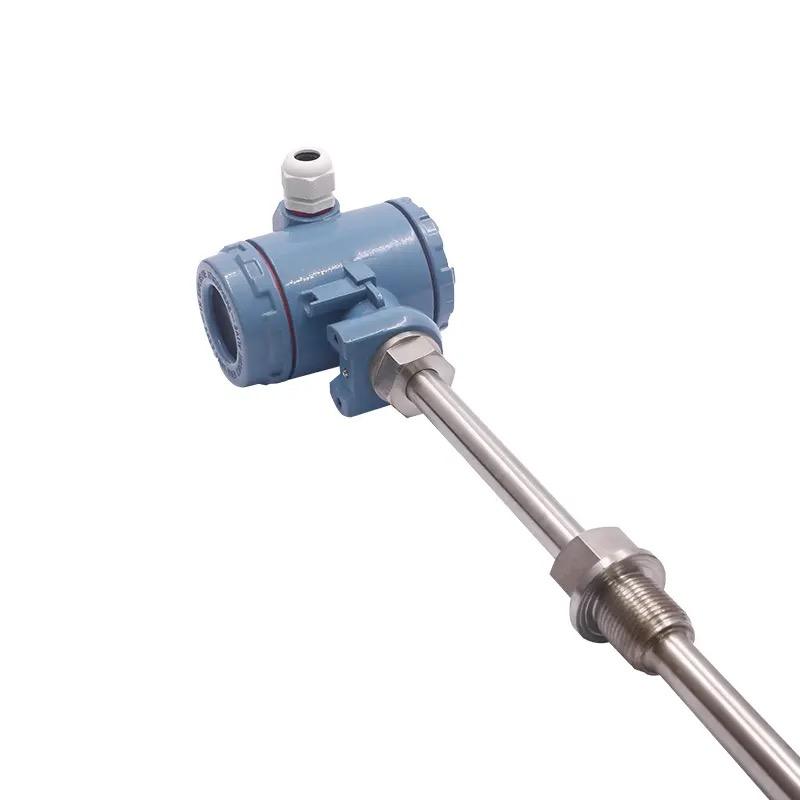

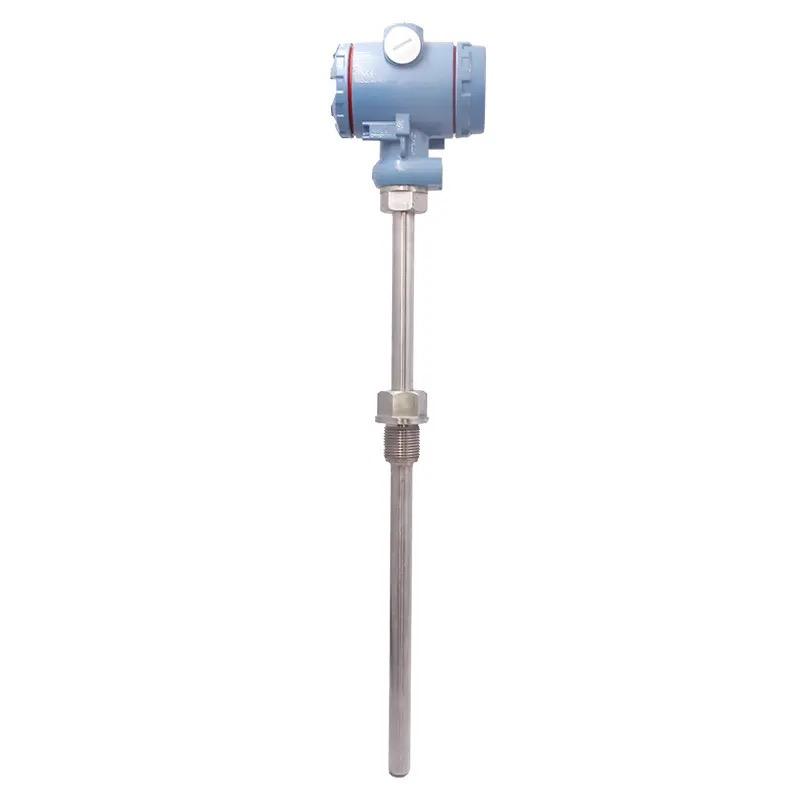

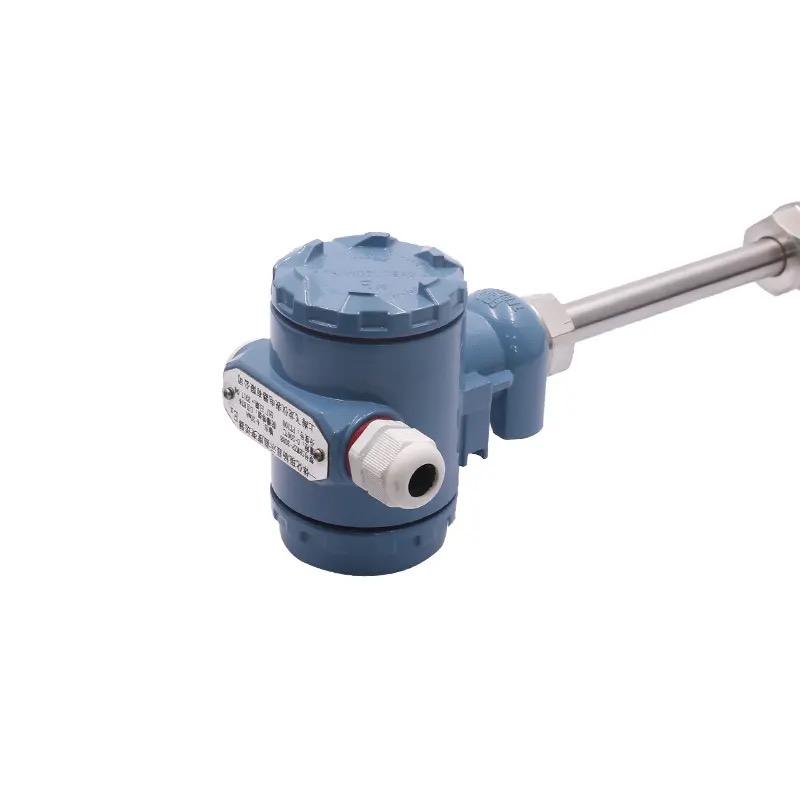

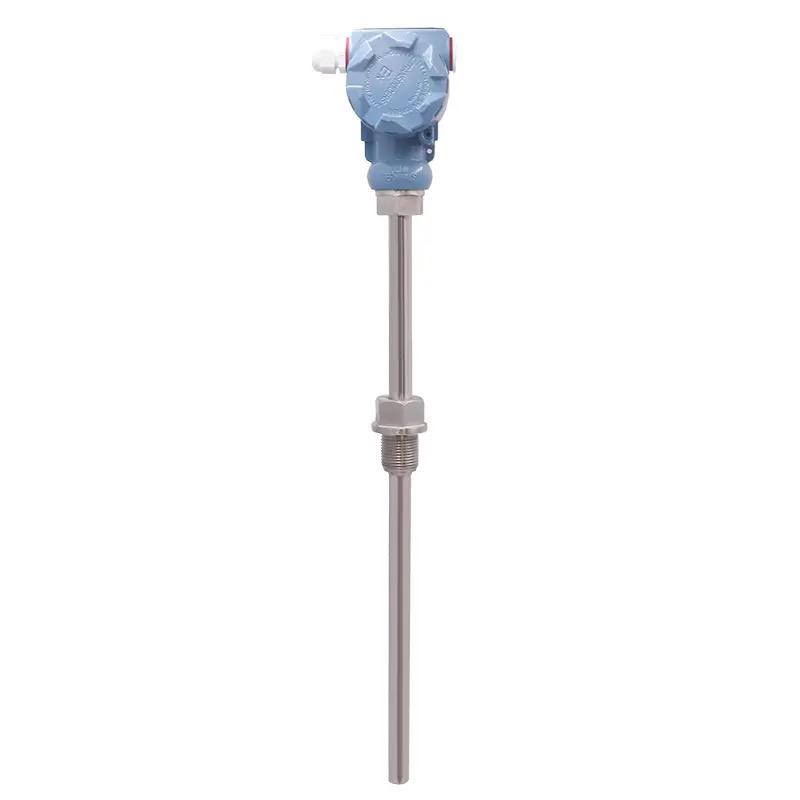

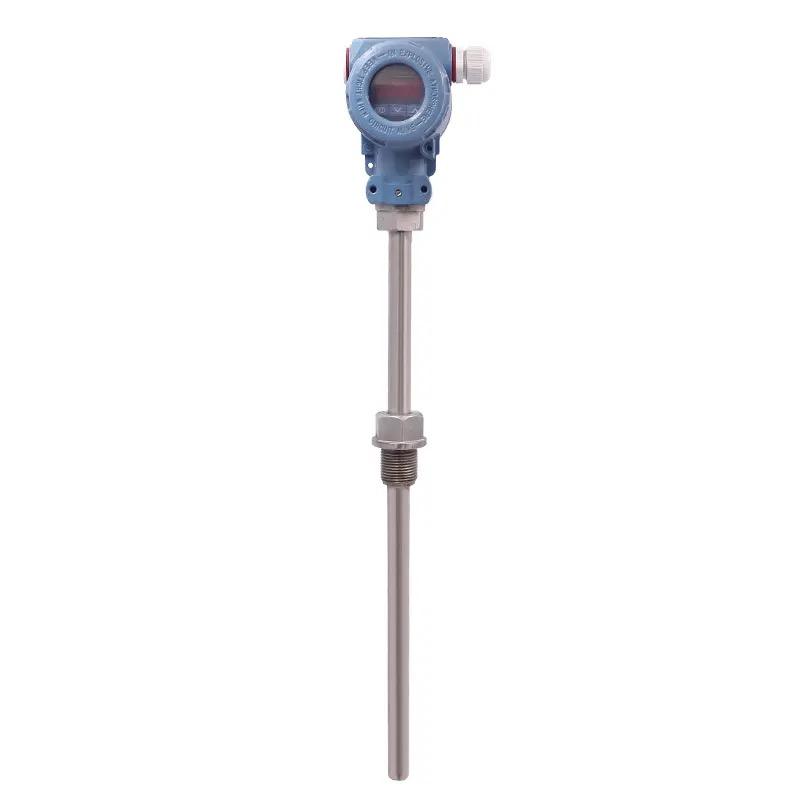

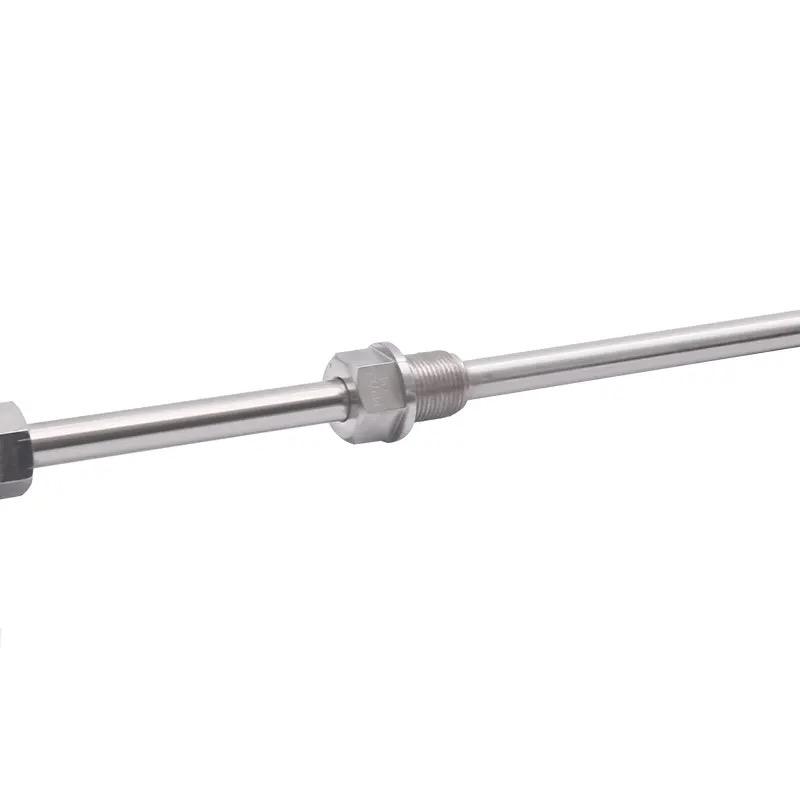

Plena solitudo integrata temperatus transfusor

Generalis temperatura transmissoris integrata adhibetur pro signo input resistentiae Thermal(RTD), Thermocouple(TC), Resistentia et intentione, quae in sensorem per PC configuratione institui potest. Locos applicabiles: · Temperatura transmissoris integrata PCP adhiberi potest ut omnes species initus significationum in 4-20mA output significationum transmutandae ·Input Scelerisque resistentia (RTD) Thermocouple(TC) Resistentia (Ω) Voltage (mV) .Per PC, configuratione instrumentum online adhiberi potest. Characteres: .General PCP adhiberi potest pro omnibus initus significationibus .Electric solitudo .Two filum ratio et 4-20mA analogia output .High accuracy .The sensorem damni vel brevis ambitus culpae significationibus praemonere possunt ad normam NAMUR NE 43 . ·EMC secundum NAMUR NE 21, CE . erit .Explosion-probationem certificatione .Output analog .The measurement range potest nativus per users

Pretium pete

Operatio et ratio structurae

Mensurae systema

Intelligens temperatus transfusor est duplex systematis filum cum output analogo, input 2-,3- et 4-filum scelerisque resistentiae (RTD) significationibus, signum thermocouple, et signum voltage, quod figurari potest per instrumentum configurationis;

lnput resistentia scelerisque (RTD)

Type	Mensuratio dolor	Min. Mensuratio dolor
Pt100 Pt500 Pt1000 Ad normam IEC 751	-200-850℃ -328-1562°F -200-250℃ -328-482°F -200-250℃ -328-482°F	10K(18°F) 10K(18°F) 10K(18°F)
Ni100 Ni500 Ni1000 Iuxta DIN 43760	-60-180℃ -76-356°F -60-150℃ -76-302°F -60-150℃ -76-302°F	10K(18°F) 10K(18°F) 10K(18°F)
Wiring type	Resistentia recompensatio 2-, 3- vel 4-connexio ratio mensurae duarum filum funem (0-20Ω)
Resistentia sensorem cable	Quisque rhoncus
Sensorem current	≤0.6mA

Resistentia signum (Ω)

Type	Mensuratio dolor	Min. Mensuratio dolor
Resistentia (Ω)	10..2000(Ω)	100(Ω)

Thermocouple (TC)

Type	Mensuratio dolor	Min. Mensuratio dolor
B (PtRh30-PtRh6) C (W5Re-W26Re) ^[3] D (W3Re-W25Re) ^[3] E (NiCr-CuNi) J(Fe-CuNi) K (NICr-Ni) L (Fe-CuNi) ^[2] N[NiCrSi-NiSi) R(PtRh13-Pt) S(PtRh10-Pt) T(Cu-CuNi) U(Cu-CuNi) ^[2] MoRe5-MoRee41 ^[1] Ad normam IEC 584 Pars 1	0- 1820℃ 32-3308°F 0- 2320℃ 32-4208°F 0- 2495℃ 32-4523°F -200- 915℃ -328-1679°F -200- 1200℃ -328-2192°F -200- 1372℃ -328-2501°F -200- 900℃ -328-1652°F -270- 1300℃ -454-2372°F 0- 1768℃ 32-3214°F 0- 1768℃ 32-3214°F -200- 400℃ -328-752°F -200- 600℃ -328-1112°F 0- 2000℃ 32-3632°F	500k (900°F) 500k (900°F) 500k (900°F) 50k (900°F) 50k (900°F) 50k (900°F) 50k (900°F) 50k (900°F) 500k (900°F) 500k (900°F) 50k (900°F) 50k (900°F) 500k(900°F)
Frigus coniunctas	Interius (Pt100) vel Exterior (0...80℃)，32..176°F
De cura frigidi coniunctas	±1k
Sensorem current	30nA

Signum intentionis (mV)

Type	Mensuratio dolor	Maximurm Mensuratio Range
Millivolt(mV)	-10...100mV	5mV

input output (Analog)

Output signum	4...20 mA.20..4 mA
Characteres transmittere	Temperatura, resistentia et intentione lineabilium
Maximum onus	( V-8V ) / 0.025A

(I) Sine reference

(2) Iuxta DIN 43710 .

(3) Iuxta ASTM E988

Digital filter Grae 1	0...8s
initus current	≤3.5mA
Current limitatio	≤25mA
Tempus mora switch	4s (Per potentiam in la-3.8mA)
Responsum tempus	1s

Signum culpa (magna culpa)

Infra mensuram inferiorem terminum	Dutput ad 3.8mA
Supra mensuram superiorem Iirmit	Output ad 20.5mA
Sensorem dampnum Sensor brevis circuitu	Poni potest as≤3.6mA vel ≥21.0 mA

Electric nexum

Potestas Supple	U _b =8...35V DC Veritatem praesidio
Electrical solitudo (input/Output)	U=3.75kV AC
Licitum range fluctuatio	U≤5V (cum Ub≥13V, f _max = 1KH ₂ t)

Sagaciter

Reference cond tiones

Rated temperature23 (73.4°F）±5K

Scelerisque resistentia (RTD)

Type	Mensuratio accurate
Pt100,Ni100 Pt500,Ni500 Pt1000,Ni1000	0.2K vel 0.08% 0.5K vel 0.20% 0.3K vel 0.12%

Resistentia signum (Ω)

Type	Mensuratio accurate	Mensurae range
Resistentia	± 0.1Ω or 0.08%	10...40Ω
Resistentia	± 1.5Ω or 0.12%	10...2000Ω

Thermocouple (TC)

Type	Mensuratio accurate
K, J, T, E, L, U, N, C, D S.B.R MoRe5-MoRe41	typ.0.5 k vel 0.08% typ.1.0 k vel 0.08% typ.2.0 k vel 0.08%
Allexit per interna relerence finem	Pt100 DIN IEC751 C1.B

Signum intentionis (mV)

Type	Mensuratio accurate	Mensurae range
Millivolt(mv)	±20μV vel 0.08%	-10...10mV

Affectus potentia copia	≤±0.01%/V cum declinatione 24 ^[3]	Mensurae range
Affectus onus	≤±0.02%/100Ω ^[3]	-10...10mV

(1) Non competit thermocouple.

(2) % relativum est ad range mensurae aptabilis (max.value).

(3) Omnis ala ad valorem finalem mensurationis refertur (FSD)

Temperatus trabea	RTD Td=±(15ppmkMax.measurement range)±50 ppmKPre-paro mensurae range)* θThermal resistentia Pt100 Td=±(15ppmk(valor finalis mensurae 200) 50ppm/KPre-pone range mensurae)* θ Thermocouple(TC) Td=±(50 ppmKMax.measurement range 50ppm/KPre-set measurement range)*θ θ = Precium environment temperatus recedit ab reterence temperatus
Diu terminus stabilitatis	≤0.1K/Year[1] or ≤0.05%/Year[1][2]

Institutionem conditio

Installation angulus	Nulla Limitatio
Installation area	IMPERVIUS connectens arca seu explosio-proot nexum arca

Application conditio environment

Mauris tortor	-40... 85℃(-40..185°F). Applicatur CREPITUS proot area
Repono temperatus	-0.. 100℃(-40...-212°F)
Clima classis	n secundum EN G0654-1, ClaasC
Condensatio	permission
Classis ProtacLlon	IP 00/IP 66 Installation
Vibratio praesidium	Ad normam IEC 60068-2-6
Electromagnetica convenientiae	Anti-EMI et anti-EMl emissio radiata secundum EN 61326-1 et NAMUR NE 21

Mechanica structura

Welghl	= 40g
Materia	Casing: PC, plaslic vel polyester
Terminal	cable max, 1.75 mm2(0.0027 in2)

Ostentare et operandi ratio remota operandi

Configurationis instrumentum	Specialis configuratione instrumentum
Configurationis software	PC software operating (Reaowin 2o00]
interlace	PC interface coniuncta cum cable TTL-l-RS 232 cum plug
parametri configurationis	Sensorem type, genus connectens, et unitas machinalis (C/F mensurae range, interna/externae frigoris commissurae compensatio, funis resistentia emenda in duobus-filo systematis mensurationis, culpae conditionis, signum output (4...20/20...4 mA), colum digitalis (humidum), exitus, punctum notam mensurans (8 characters) et output analog.
